OK so this week is all about FSOP. But perhaps more importantly I'd like to share with you a process of "security research".
Our goal is to take this technique which was most effective in glibc 2.23 and see if we can find ways to trigger it in glibc 2.34.
If I do this correctly (or close enough) you'll realize that there is a rich landscape of possible targets and fixes for
you to find if you're obsessive enough. This is my exploit, there are many like it, but this one is mine.
So as we dive into a particular technique, keep in mind that you are seeing a possible process for
hunting general purpose exploits.
structs everywhere
Filestreams are used all of the time. In particular anytime you write to screen, read from a device, display an error message, or read from a
file you are using a filestream.
You may even notice that in something as high-level as Python we can do f=open("filename", "r") f.read() f.seek(0) f.read() f.close()
That is, when you read a file you open a "file handler" and you "stream" from the file and if you try to stream twice you get an empty string.

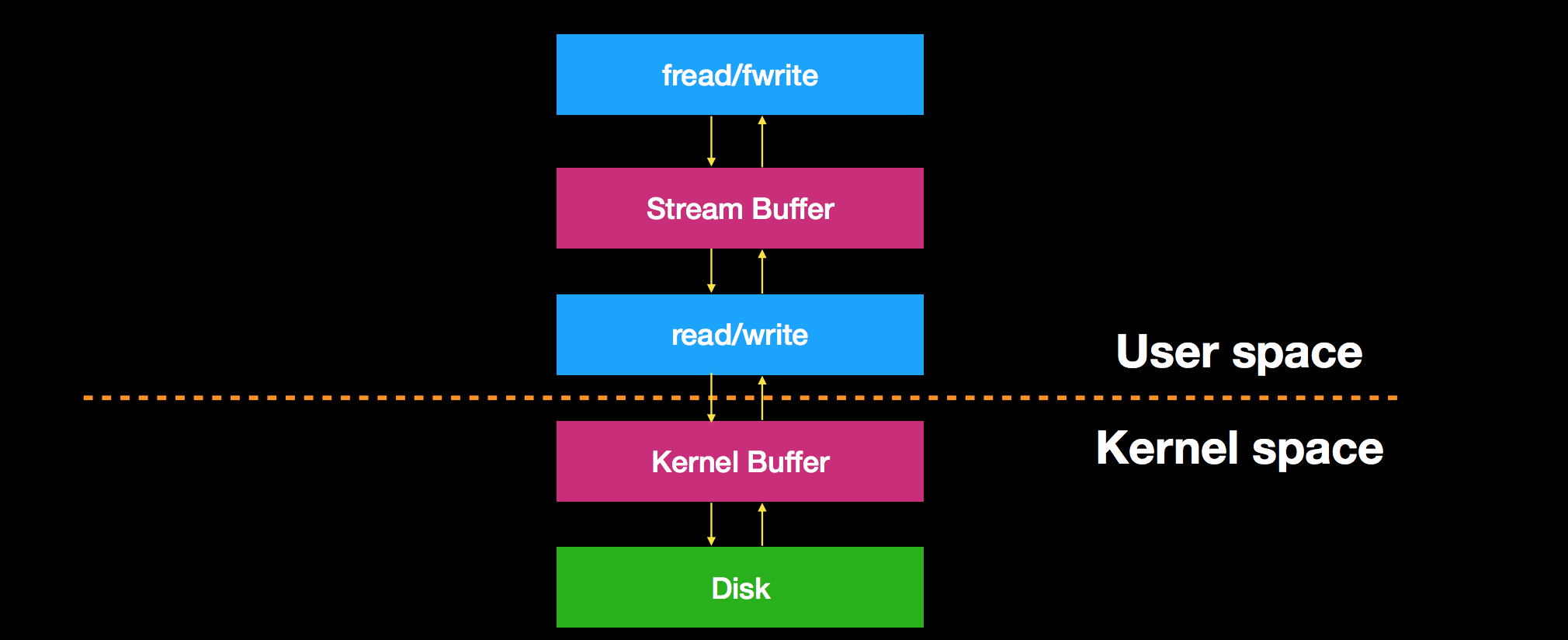

The high-level WHY is to reduce locking the kernel:
The HOW is using structs:
There are three structs we care about this week:
_IO_FILE
_IO_jump_t
_IO_FILE_plus
In general we will be dealing with all of the wacky symbols in glibc that start with _IO_ and the main source code that implements all of this is in
/libio/libioP.h
/libio/genops.c
Source for those two (glibc 2.34 version) are at the bottom of today's notes.

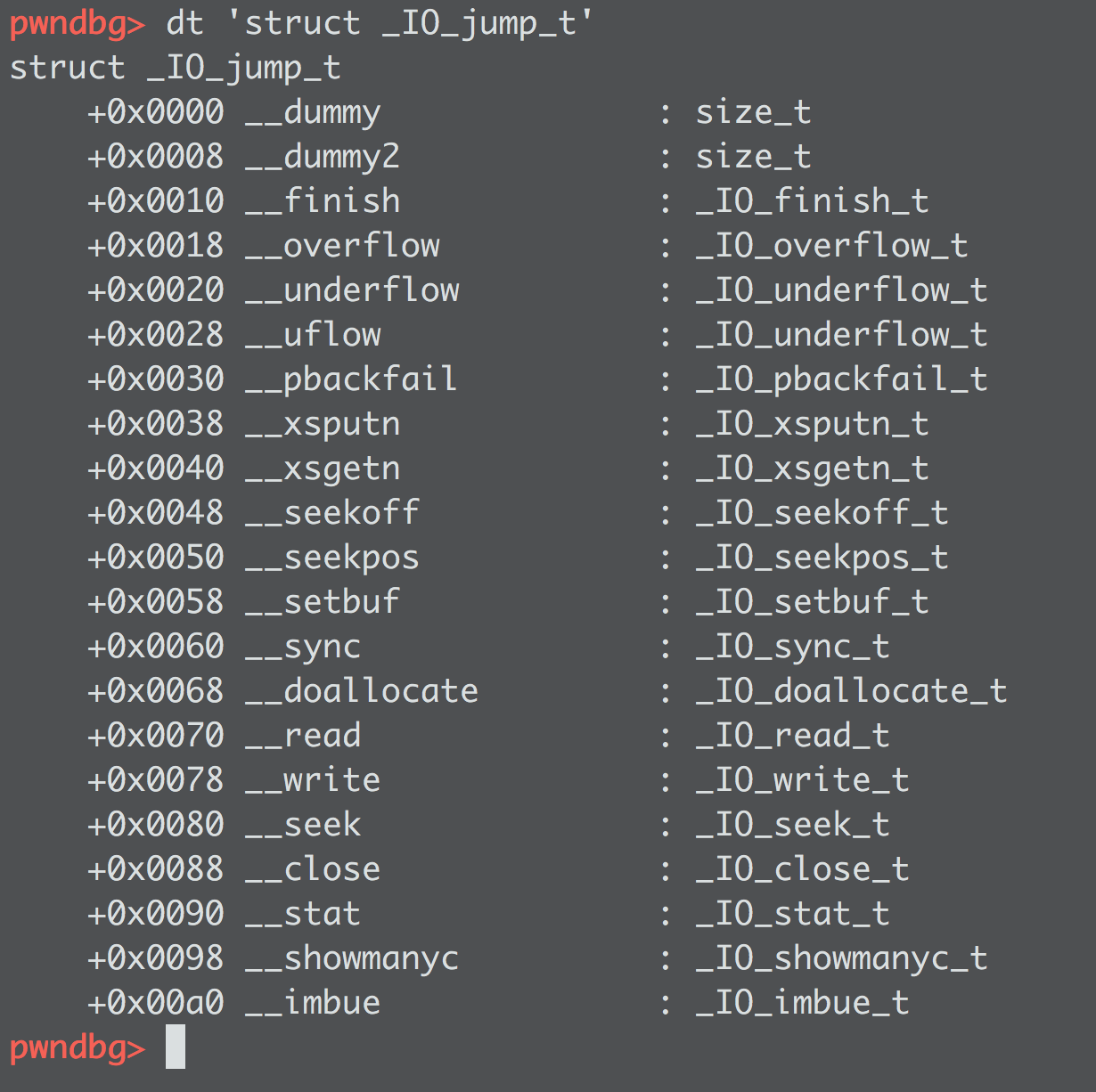

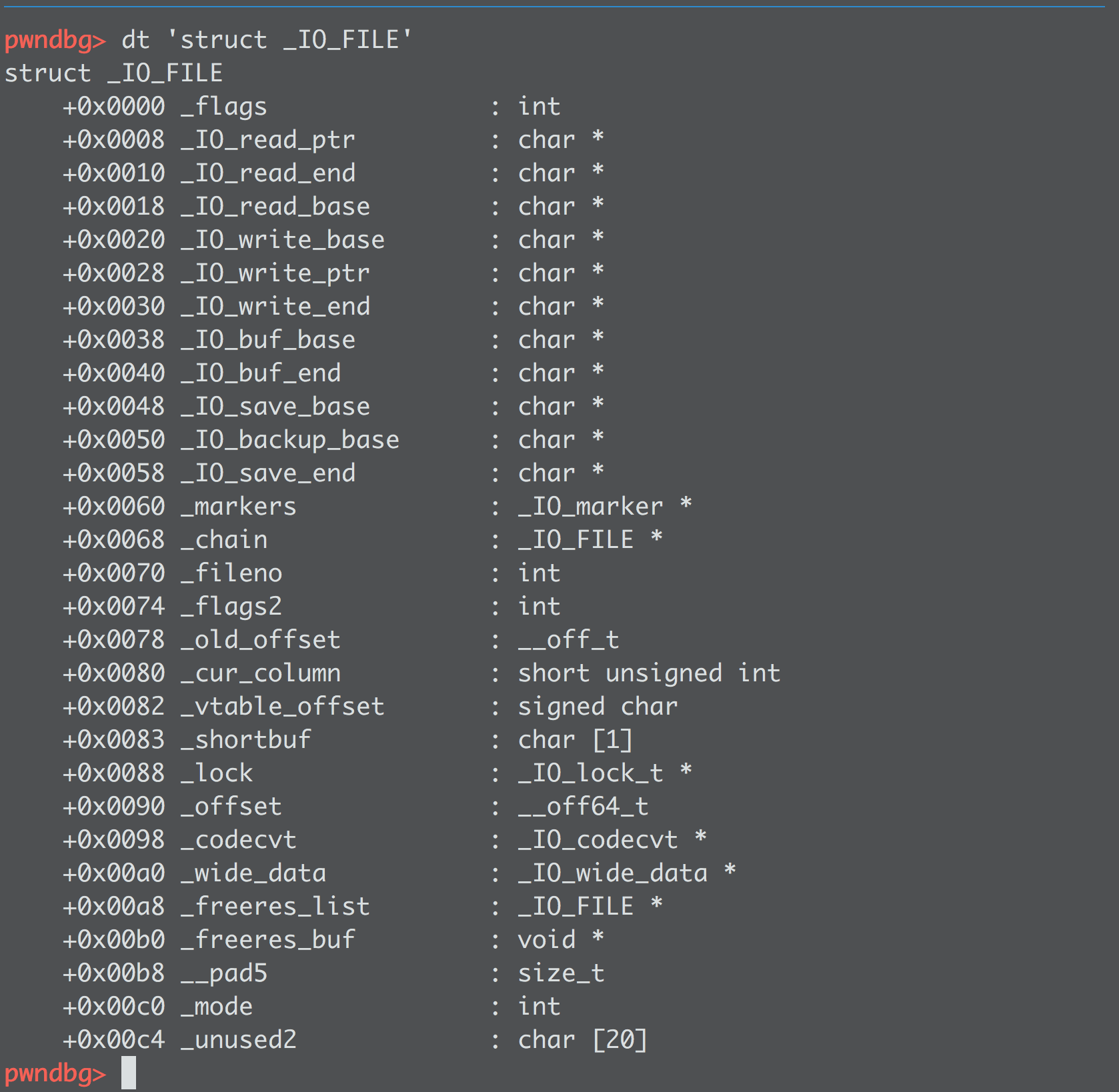

So, just like when we learned tcache and main_arena we need a treasure map for _IO_FILE and _IO_jump_t:
The story is roughly like this:
glibc keeps a singly-linked-list of filestreams
the head of this list is _IO_list_all
the filestreams are officially type: _IO_FILE_plus
the _IO_FILE_plus is just a thin struct that wraps an _IO_FILE and an struct _IO_jump_t* (pointer to a jump table)
the _chain attribute is a pointer to the next filestream.
there are ALWAYS stderr, stdout, and stdin in our linked list when we start the program

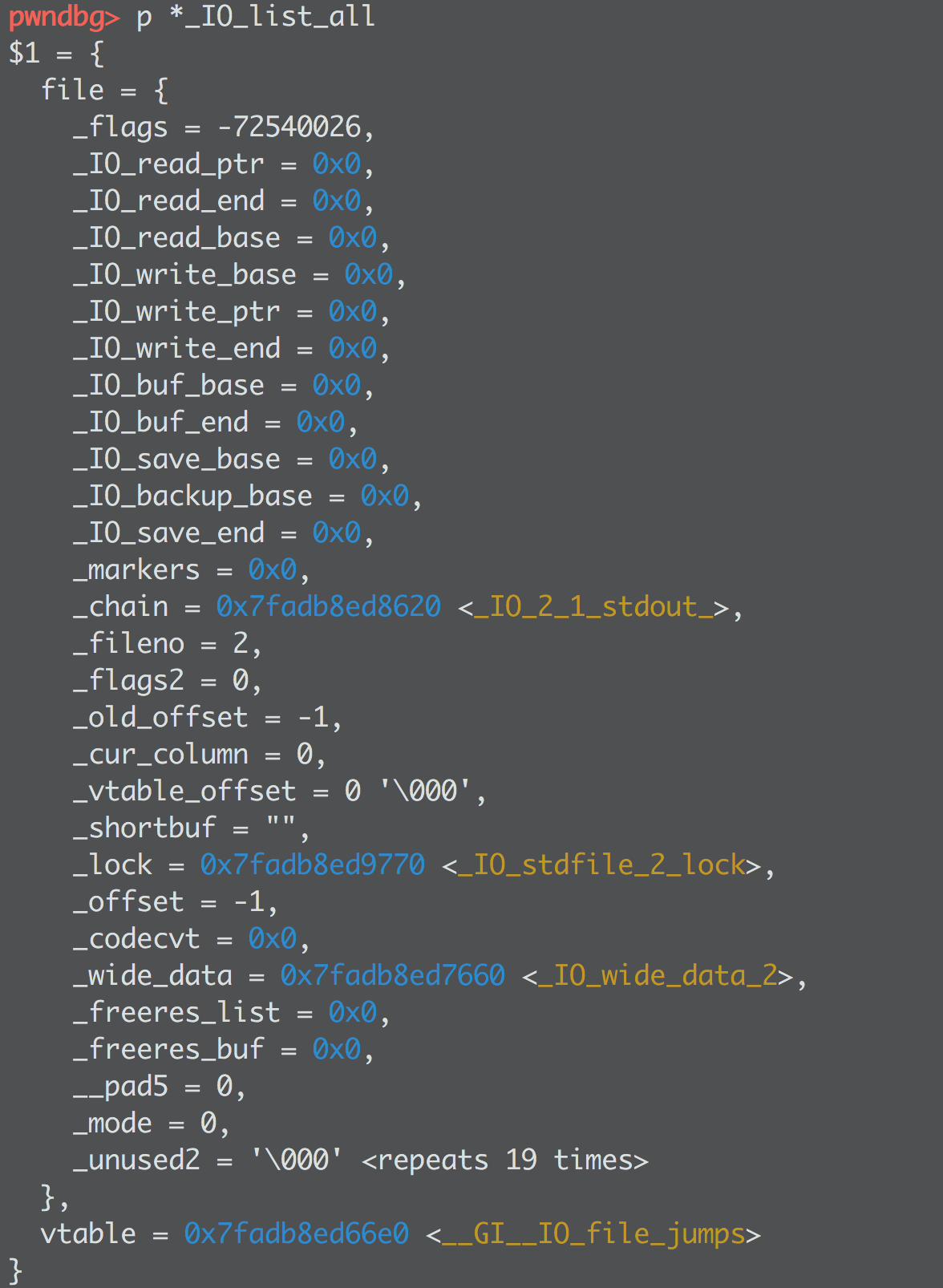

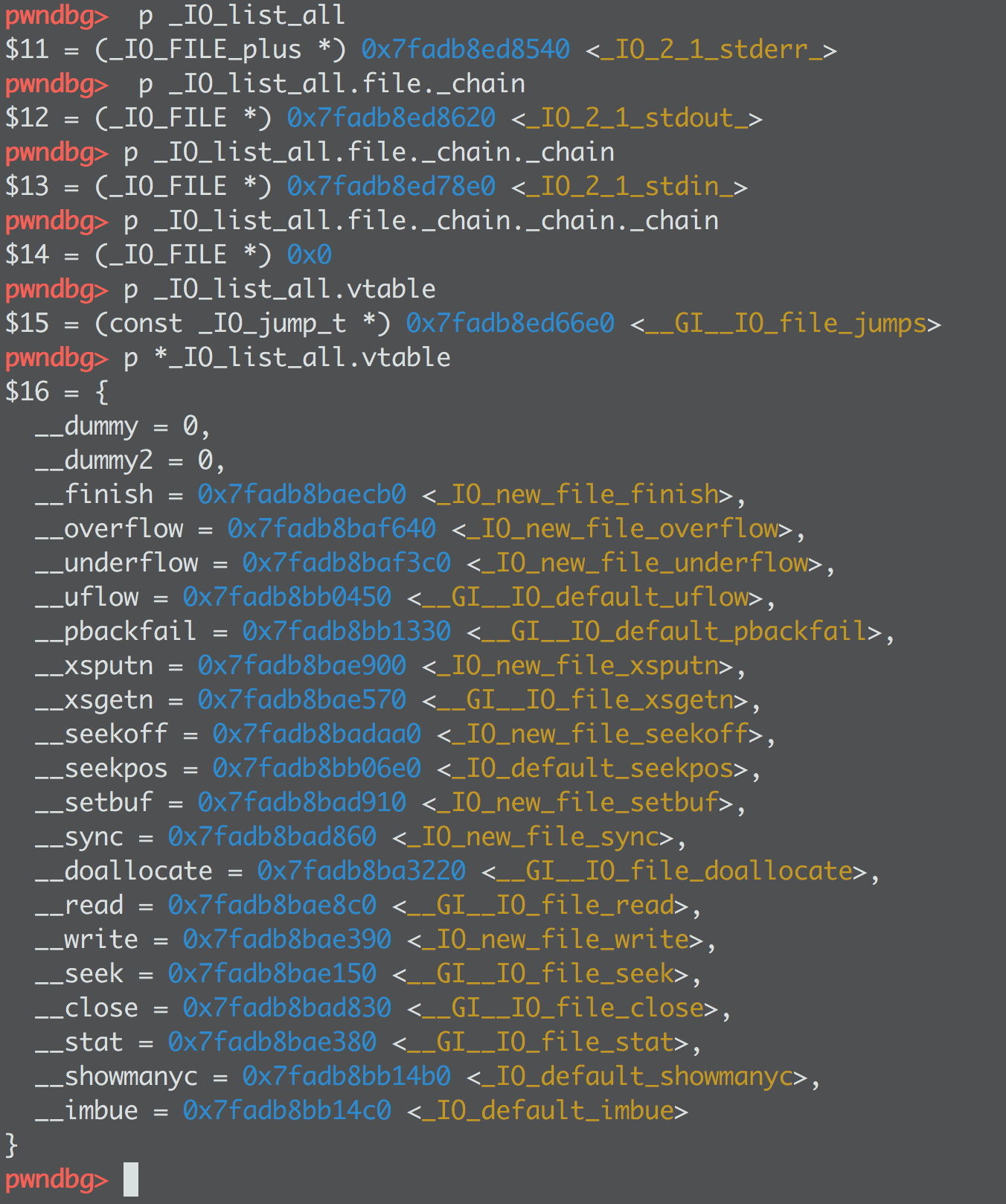

By the way you can inspect these things in gdb as follows:
Jump to /class34
We left off here but I'll make it another site
possible objective 1: vtable hijacking
So the jump_table is a struct full of function pointers.
This is needed for object-oriented coding.
If you can overwrite a function pointer inside the vtable of a filestream then trigger that function you can control the instruction pointer.
possible objective 2: arbitrary reading
When a filestream flushes it's buffers it will stream from the ptr to the end of the stream. If we control those addresses we can get arbitrary reads.
possible objective 3: arbitrary writes
Likewise if we take over stdout and can carefully control pointers we can dump a buffer into a region.
Various gotchas
_IO_flush_all_lockp
vtable validation
how and when to trigger
From our perspective this is a target rich topic, but a little light on blog-posts and articles and pretty pictures. We'll have to forge our own path. Exciting!
FSOP Playground and tricks draft 1
I'll be updating this as we go for sure, but I'd like to start with an FSOP playground for making a fake _IO_FILE_plus and linking it into the _IO_list_all:
