House of Orange pt. 1

So we're going to learn how to pull off the House of Orange over the next 4 lectures.

I have reasons for it. They're like this:

• What I really want is FSOP
• House of Orange is an FSOP for older glibcs
• There are many good examples of House of Orange write-ups
• We need to learn cutting edge FSOP
• But it's a lot so we'll start with an older (better documented) version
• Then work our way to the new (poorly documented and wild)

OK so this exploit leans on the ability to do an overflow in the heap.

There are three parts to this exploit:

• Strategic Goal: Use FSOP and "vtable hijacking" to point the instruction pointer to a one_gadget
• Baseline Hack: convert an overflow into a use-after-free by "freeing" the top chunk
• Pivot Part: Use the "unsorted bin attack" to make a specific and interesting write-what-where

OK so today we'll do the non-FSOP parts.

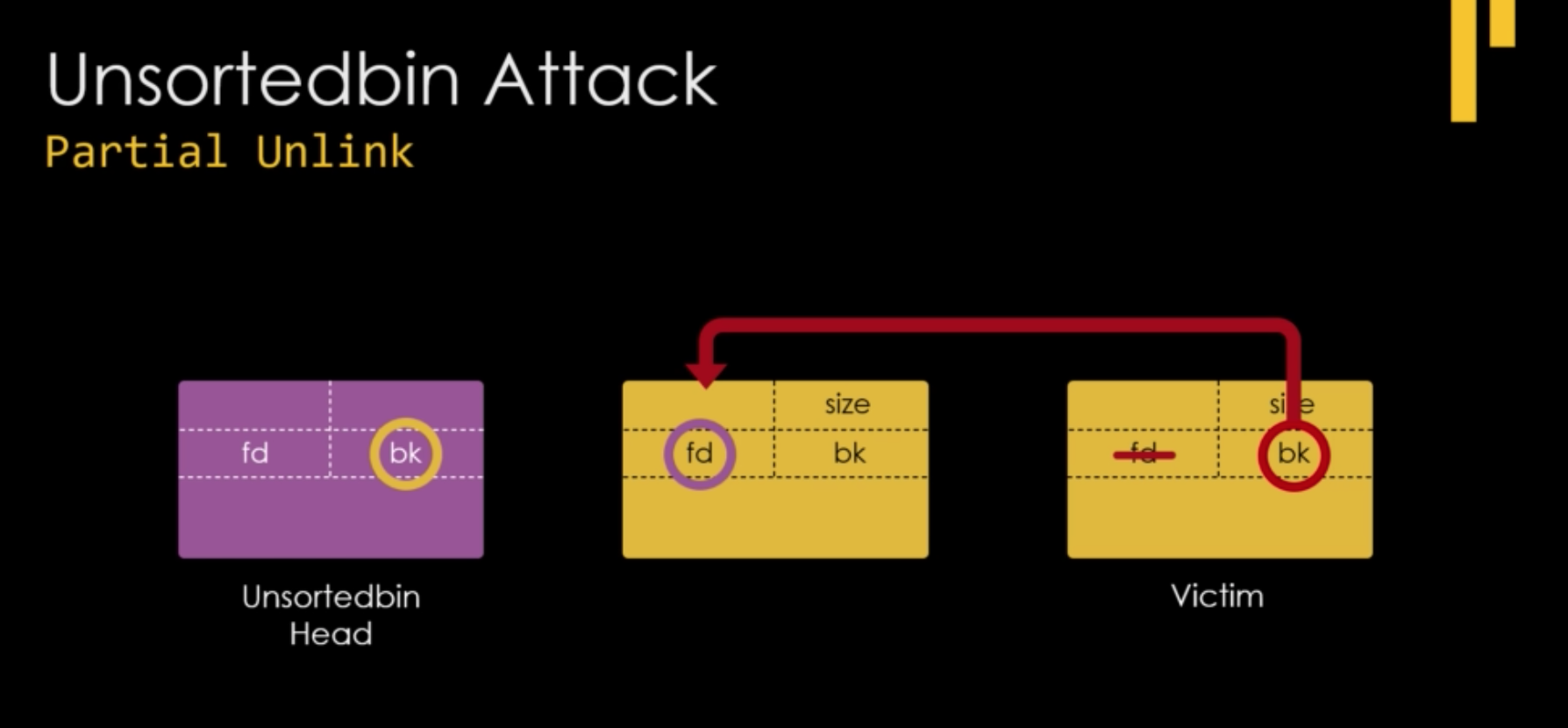

The Unsorted Bin Attack

AKA partial unlink attack

This is almost a micro-attack, it's not as powerful as the fastbin dup or tcache poison.

The goal of this attack is to drop a heap address into a target. It isn't something that gives us control over the target address. It's more like a WRITE-THIS-WHERE rather than write WHAT where.

This micro-attack can be used to gain a glibc leak (the main_arena) or used to put a pointer to your chunk somewhere cool then making your chunk into any kind of FAKE STRUCT.

The concept is simple enough:

• make a chunk that is past the tcache range (and one buffer chunk between it and the top chunk)
• free it. It will go into the unsorted bin.
• Overwrite the backwards pointer (this is the part that requires a vulnerability) to target - 16
• malloc another chunk (the same size is most stable)

How does it work? When the unsorted bins are used they get sorted into small or large bins. In the process they get unlinked from the back of the list. The only pointer that matters is the bk pointer which is followed and the address of the victim chunk is written there.

https://wargames.ret2.systems/level/how2heap_unsorted_bin_attack_2.27

Now let's pull it off in the targetrange code from Wednesday.

"Free" without "Free"

AKA freeing the top chunk

So this is just a cute add-on inside the house of orange. It's the opposite of the house of force.

• You need an overflow near the top chunk
• Overwrite the topchunk size field and make it smaller
• The new "end" of the fake top chunk needs to be a multiple of 0x1000
• Now ask for something larger than the new fake size
• Voila you have made a "free" (and a use after free) without using free

How this works:

When you ask for a chunk larger than the top chunk size glibc tries to extend the topchunk.

If there is a gap between the end of the top chunk and the beginning of the extension zone (which happens because we shrank it) then the top chunk is now an orphan and will get sorted into the unsorted bin.

This is interesting because we can convert mallocs into a free.

Let's try this in the heap vulnerability playground.

House of Orange Concept

OK so in house of orange you only need to malloc and overflow/edit.

Make a chunk near the top chunk, overflow the size and ask for a large chunk, freeing the top chunk.

Now use the overflow to do the unsorted bin attack by overflowing the back pointer in the, now freed, top chunk.

Since we control the size field (yet again) we can control which bin in the main_arena our top chunk will get sorted into.

We can now make a fake _IO_FILE struct in that topchunk which we'll explore next week.
